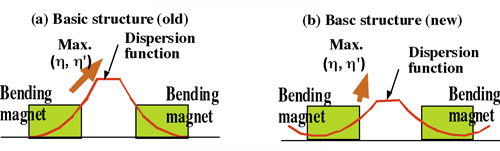

Fig. 3. Difference between distributions of a dispersion function over the basic structures of magnet lattice used in the new and previous operations

It is found that a peak value of the dispersion in the new structure (b) is lower than that in the previous structure (a) at the inside of a bending magnet due to leakage of the dispersion to the outside.
