Successful Observation of Ultrafast Structural Dynamics in Nanocrystal (Press Release)

Release Date
15 May, 2014
  • SACLA

Hokkaido University
University of Southampton
RIKEN
Kwansei Gakuin University
Kyoto University
Japan Synchrotron Radiation Research Institute (JASRI)

Key Points
• Observation of ultrafast structural dynamics in a vanadium dioxide nanowire undergoing a metal-insulator phase transition
• Realization of measurements with atomic-level sensitivity and picosecond-order temporal resolution using an X-ray laser
• Expected contribution to the development of ultrafast video recording of atoms and molecules in materials and clarification of various phase transition phenomena

A group of researchers from Hokkaido University, the University of Southampton, RIKEN, Kwansei Gakuin University, Kyoto University, and JASRI has successfully observed the ultrafast structural dynamics in a nanowire at the atomic level at the SPring-8 angstrom compact free electron laser (SACLA) facility.*1 The group was led by Marcus C. Newton (assistant professor) of the Research Institute for Electronic Science, Hokkaido University (currently, a lecturer at the University of Southampton, UK), Yoshinori Nishino (professor) of the same institute, and Yoshihito Tanaka (Unit Leader) of the RIKEN SPring-8 Center (currently, a professor at the University of Hyogo and a visiting scientist at RIKEN).

Vanadium dioxide undergoes a phase transition, in which its electric properties and atomic arrangement are changed, upon external stimulation such as a change in temperature or exposure to light. Because of this, vanadium dioxide is expected to be used in switching devices (ON/OFF switches in electric circuits) and driving devices (actuators). However, the mechanism behind the phase transition of vanadium dioxide caused by light stimulation has remained unclear because it occurs in a very short time, and available experimental and theoretical methods are both limited.

The research group successfully observed transient ultrafast structural dynamics in a vanadium dioxide nanowire at the atomic level using XFEL. The key features of XFEL in this research were a very short pulse duration of approximately 10 fs (one femtosecond = one-quadrillionth of a second) and high coherency to enable the observation of atomic-level dynamics. Moreover, an advanced method combining the pump-probe method*2 and coherent X-ray diffraction*3 was adopted for the observation.

The obtained results demonstrated that XFEL has great potential for observing ultrafast structural dynamics at the atomic level. This will pave the way to developing innovative techniques for the ultrafast video recording of atoms and molecules in materials, and will contribute to clarifying various phase transition phenomena such as the high-temperature superconductivity of strongly correlated electron materials.*4

The achievements of this research were published in the scientific journal Nano Letters on 14 May 2014.

Publication:
"Time-Resolved Coherent Diffraction of Ultrafast Structural Dynamics in a Single Nanowire"
Marcus C. Newton *†‡, Mayu Sao †, Yuta Fujisawa †, Rena Onitsuka , Tomoya Kawaguchi #, Kazuya Tokuda #, Takahiro Sato , Tadashi Togashi , Makina Yabashi , Tetsuya Ishikawa , Tetsu Ichitsubo #, Eiichiro Matsubara #, Yoshihito Tanaka , and Yoshinori Nishino †
† Research Institute for Electronic Science, Hokkaido University, Sapporo 001-0021, Japan
‡ Department of Physics & Astronomy, University of Southampton, Southampton SO17 1BJ, U.K.
RIKEN SPring-8 Center, RIKEN, 1-1-1, Kouto, Sayo, Hyogo 679-5148, Japan
Department of Physics, School of Science and Technology, Kwansei Gakuin University, Gakuen, Sanda, Hyogo 669-1337, Japan
# Department of Materials Science and Engineering, Kyoto University, Kyoto 606-8501, Japan
Japan Synchrotron Radiation Research Institute (JASRI), 1-1-1 Kouto, Sayo-cho, Sayo-gun, Hyogo 679-5198, Japan
Nano Lett., 2014, 14 (5), pp 2413–2418
DOI: 10.1021/nl500072d
Publication Date (Web): April 17, 2014

《Figures》

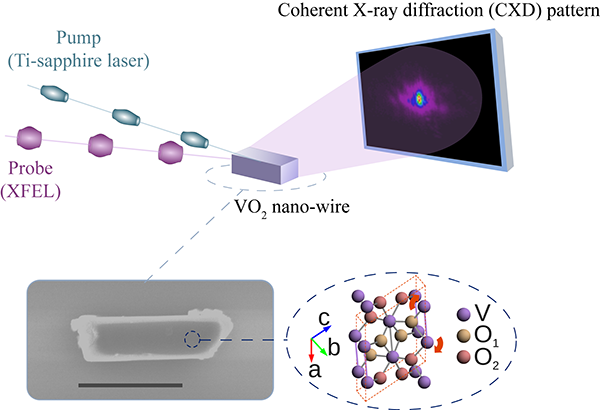

Fig. 1 Schematic of experimental method combining pump-probe method and coherent X-ray diffraction
Fig. 1 Schematic of experimental method combining pump-probe method and coherent X-ray diffraction

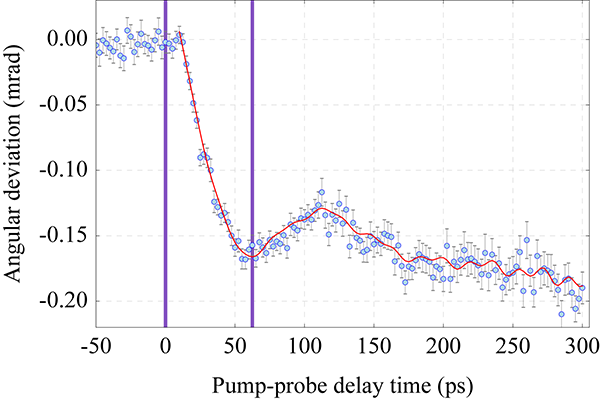

Fig. 2 Change in central angle of coherent X-ray diffraction pattern with time
Fig. 2 Change in central angle of coherent X-ray diffraction pattern with time

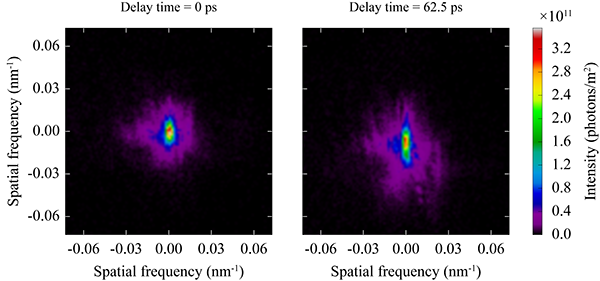

Fig. 3 Coherent X-ray diffraction patterns at time delays of 0 and 62.5 ps
Fig. 3 Coherent X-ray diffraction patterns at time delays of 0 and 62.5 ps




《Supplementary explanations》
*1 SPring-8 angstrom compact free electron laser (SACLA) facility

Japan's first XFEL facility named SACLA was constructed jointly by RIKEN and JASRI. SACLA is one of the five national core technologies in the Third Science and Technology Basic Plan. Its construction and preparation started in FY2006 as a five-year project and it was completed in March 2011. The name SACLA is short for SPring-8 angstrom compact free electron laser. The first successful oscillation of an X-ray laser was achieved in June 2011 and it has been available for public experimental use since March 2012.

*2 Pump-probe method
A method for observing transient ultrafast phenomena. Changes caused by irradiating a specimen with a pump light (for excitation) are observed using a probe light (for measurements); both lights have very short pulse durations. In measurements, the time difference between pump-light irradiation and probe-light irradiation (time delay) is varied to observe a specimen at different time delays and examine the temporal development of ultrafast phenomena.

*3 Coherent X-ray diffraction
Coherent light refers to light waves that are in phase and is a characteristic of laser light. When a specimen is irradiated with coherent X-rays, some X-rays scatter elastically; this is coherent X-ray diffraction. Coherent X-ray diffraction patterns are sensitive to even a slight difference in the structure of specimens. The computer analysis of coherent X-ray diffraction patterns can produce images of specimens.

*4 Strongly correlated electron material
In general semiconductors and metals, electrons behave as if they were independent free particles. In strongly correlated electron materials, however, electrons strongly interact with each other, exhibiting unique electric, magnetic, and optical properties.
