Catalytic reactions are an important part of everyday life. Gas exhausts from car engines contain harmful compounds like poisonous carbon monoxide, and nitrogen oxides which cause smog and acid rain. Modern automobiles are equipped with catalytic converters which, thanks to their purifying ability, can convert these into harmless compounds before leaving the exhaust system. The catalysts used in a catalytic converter are made up of precious metals, which are scarce relative to most other elements, which is why scientists are in pursuit of new, efficient catalysts that can work with smaller amounts of precious metals.

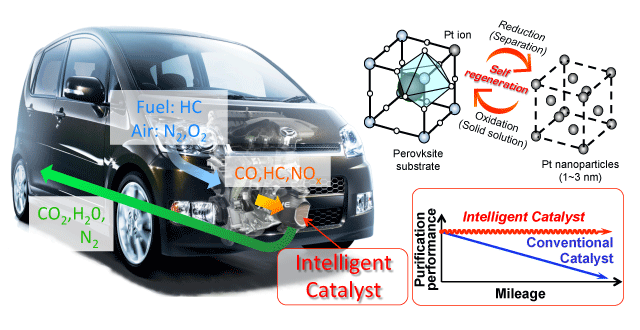

This is where the so-called “intelligent catalysts^*1,” developed by Daihatsu Motor Co., Ltd., have succeeded. Intelligent catalysts rely on the cyclical motion of precious metal nanoparticles in and out of the substrate – a mineral powder into which precious metals are injected – during the reduction-oxidation cycles of the engine. This constant motion prevents the nanoparticles from collecting into groups when exposed to heat during vehicle use, achieving high efficiency and durability with small quantities of precious metal.

Intelligent catalysts are now successfully installed in several million vehicles in Japan. While most of the research in the field so far has focused on the structure of the catalysts, some recent research efforts have pointed to the role played by changes in the electronic structure during catalytic reactions. Because catalytic reactions occur through complex exchanges of electrons between the reactant molecules, the catalyst, and the catalyst substrate, it has become essential to use a measurement technique that can follow these changes in the electronic structure as they occur within the catalytic reaction.

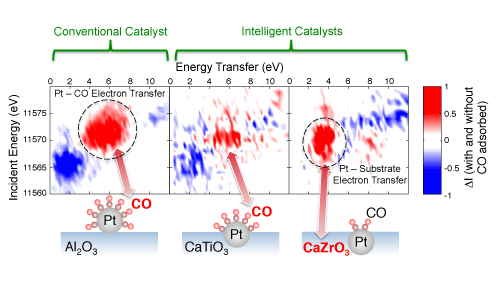

To better understand these electronic exchanges, a team of scientists from the Japan Atomic Energy Agency and Osaka University in collaboration with Daihatsu Motor Co., Ltd. measured two types of platinum-based automotive catalysts – conventional and intelligent. They found that while the conventional catalyst only showed an electron transfer between the platinum nanoparticles and the reactant carbon monoxide molecule, there is an additional electron transfer between the platinum nanoparticles and the metal within the substrate in the intelligent catalysts, indicating that the platinum nanoparticles still ‘feel’ the metal atoms inside the substrate even when they are out of the substrate on the surface during reduction.

Platinum and zirconium, the metal inside the intelligent catalyst substrate, both have extended electronic orbitals – paths along which individual electrons circle the atoms within the metals – which can overlap even when the atoms are not in close physical proximity. This special overlap between the atom orbitals can be seen as a ‘rubber band’ pulling the platinum atoms back into the substrate after they have been pushed out during reduction. The researchers think this ‘electronic rubber band’ effect is at the heart of the efficiency and durability of the intelligent catalysts. Further, comparing two intelligent catalysts with different amplitudes of orbital overlap between the platinum nanoparticles and the substrate, they found that a moderate amplitude (i.e. a rubber band of moderate strength) is best for the efficiency of the catalyst.

To determine how the electronic rubber band effect works, they used resonant inelastic x-ray scattering^*2 (RIXS), a state-of-the-art spectroscopy technique that relies on a highly precise detection of x-rays scattered off of a sample. RIXS has recently emerged as a powerful probe of electron transfer processes, and as such, has been very instrumental in characterizing the electronic structure of superconducting materials. While becoming a highly demanded tool in condensed matter physics, applications of RIXS to chemistry and catalysis in particular have remained scarce, despite obvious benefits such as the use of high-energy x-rays that make experiments in constrained environments like in-situ cells possible, and the ability to select one particular element within a sample (for instance, the precious metal in a catalyst). In this study, the team put these benefits to good use by performing RIXS measurements on automotive catalysts under working conditions (oxidizing and reductive atmospheres) in in-situ cells. The experiments were performed at the RIXS endstation of the JAEA beamline BL11XU at the Japanese synchrotron SPring-8^*3.

Publication:
"Toward Optimizing the Performance of Self-Regenerating Pt-Based Perovskite Catalysts"
ACS Catalysis　5（2015）1112–1118
doi: 10.1021/cs501608k
