BL33LEP 概要

問い合わせ番号

INS-0000000564

ビームラインの概要

  Backward Compton scattering of ultraviolet laser photons off circulating 8-GeV electron beam in the SR ring produces a GeV energy polarize γ beam (laser electron photon). At usual operation, 350-nm Ar laser photons are injected from the Laser Hutch into the straight section between the BM1 and BM2 bending magnets of the SR ring. By transferring momentum from an 8-GeV electron to a laser photon via the Compton scattering, the energy of the scattered photon becomes 2.4 GeV at the maximum. The scattered electron goes through the BM2 magnet and is detected with a tagging counter placed besides the CR2 chamber. By measuring the position of the electron at the tagging counter, using the BM2 magnet as a magnetic spectrometer, we can tag the energy of corresponding photon. Due to the limitation for the distance between the tagging counter and the 8-GeV orbit, the lowest energy of the tagged photon is 1.5 GeV. When the laser beam is polarized, the scattered γ beam is also polarized and the polarization is almost 100 % at the maximum energy point. The laser electron photon beam is transported to the Experimental Hutch and utilized for particle and nuclear physics experiments. The LEPS (Laser Electron Photon at SPring-8), which consists of a large dipole magnet, several position detectors, and time-of-flight counters, measures the momentum and the speed of charged particles.

研究分野

  • Meson photoproduction from nucleon and nucleus
  • Photoexcitation of hyperons, nucleon resonances, and other exotic states
  • Photonuclear reactions
  • Beam diagnoses
  • Test and calibration of detectors with GeV photon beam

キーワード

  • Scientific field
    Quark nuclear physics, Exotic states, Baryon specrtroscopy, Photoproduction, Laser-electron photon, Polarization
  • Equipment
    Laser, Tagging, Calorimeter, Time projection chamber, Charged particle spectrometer, Polarized photon, Polarized target, Data acquisition system, SSD

光源と光学系

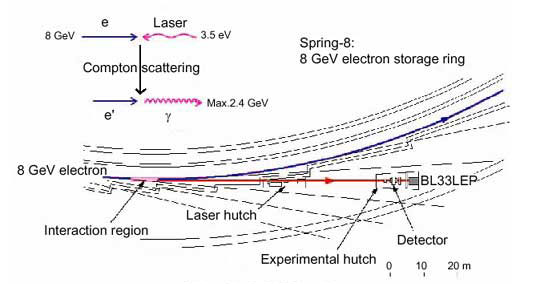

Outline of the BL33LEP beamline

実験ステーション

  • Beam

    Energy range (tagged photon) 1.5 ∼ 2.4 GeV (355-nm Solid-state laser)
    1.5 ∼ 2.9 GeV (266-nm Solid-state laser)
    Energy Resolution ∼ 5 × 10-3
    Photon Flux 4 × 106 photon/s
    2 × 105 photon/s

  • Detectors

    The LEPS spectrometer

  • Charged particle spectrometer

     The design of the LEPS detector is optimized to measure the φ-photoproduction reaction at the forward angles. The detector consists of a plastic scintillator to detect charged particles after a target, an aerogel Cherenkov counter, silicon-microstrip detector, drift chambers, a dipole magnet, and a time-of-flight TOF counters. The detector measures the momentum of the charged particles produced at the target. The particle identification is performed by measuring the time of flight of momentum analyzed particles from the target to the TOF wall. The first physics run with a liquid hydrogen target was started in December, 2000.

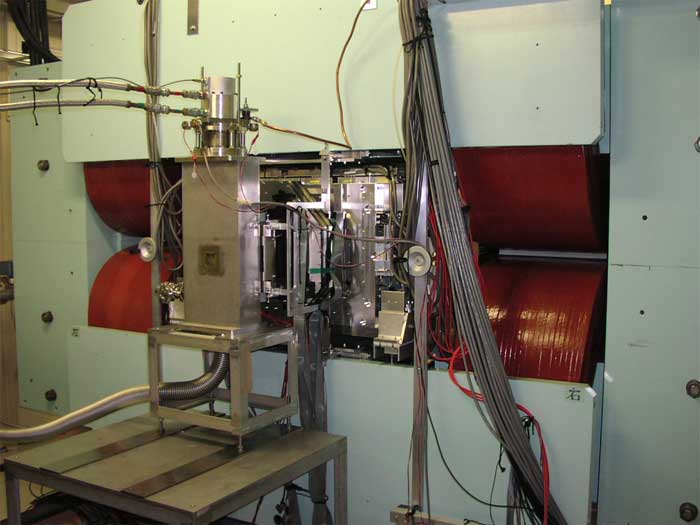

    Upstream side of the LEPS spectrometer

  • Gamma counter

     Pb-Scintillating fiber counters are used for the measurement of mesons decaying into photons. The backward counter consists of 252 Pb-SciFi counters and covers from θ = 30 to 100 degrees.

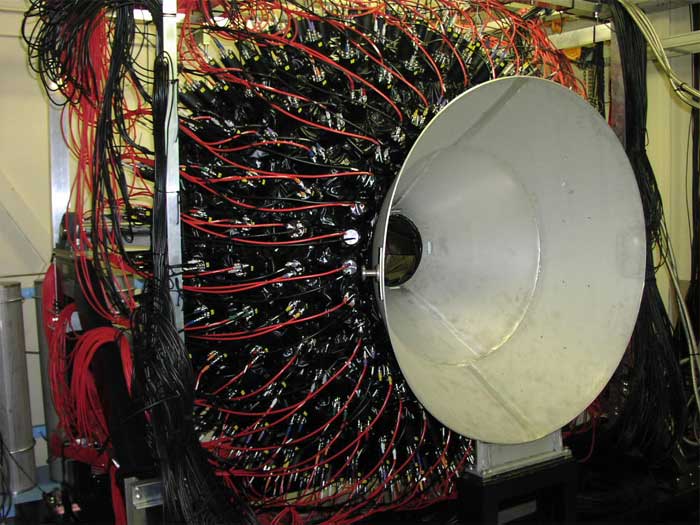

    The LEPS backward gamma counter

  • Time projection chamber

     A time projection chamber has been built for measuring Σ± hyperon decaying within a few cm from the target. The detector have large acceptance for charged particles at large angles, which cannot be covered by the forward LEPS spectrometer.

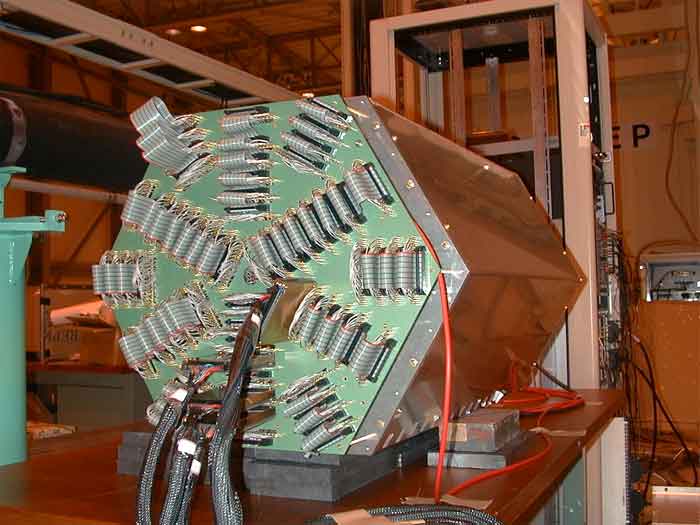

    Time projection chamber tested beside BL33LEP

文献検索

BL33LEP PUBLICATION SEARCH

連絡先

(注)e-mailアドレスは@マーク以下を省略していますので、アカウントの後に@spring8.or.jpを付けてください。

中野 貴志
大阪大学核物理研究センター
〒567-0047 大阪府茨木市美穂ヶ丘10-1
Phone : 06-6879-8938
FAX : 06-6879-8899
e-mail : m1.png

大橋 裕二
(公財)高輝度光科学研究センター(JASRI)
〒679-5198 兵庫県佐用郡佐用町光都1丁目1-1
Phone : 0791-58-0851
FAX : 0791-58-0850
e-mail : ohashi

Website

http://www.rcnp.osaka-u.ac.jp/Divisions/np1-b/?LEPS_%28BL33LEP%29
